Enerdrive B-TEC 12V 200Ah G2 Lithium Battery

Enerdrive 12V 200amp B-TEC LifePo4 Lithium Battery

Name: Enerdrive 12V 200amp B-TEC LifePo4 Lithium Battery
SKU: EPL-200BT-12V-G2
Price: 2299.00 AUD
Availability: OutOfStock

$2,299.00

Nominal Capacity: 200 amp hr

Cycle Life (DOD – 80% under controlled conditions) >_ 2000 cycles

Maximum Charge Current: 150a @ 25 degree C for 30 min

Recommended Charge Current: 40 – 100 amp

Normal Charge Voltage CV/CC: 14.20 – 14.60V

Standby (Float) Voltage: 13.50 – 13.80V

Maximum Charge Current: 150amp @ 25 degree C for 30 mins

Battery Output Voltage Range: 11.00 – 14.60V

Maximum Discharge/Pulse Current: 200 amp @ 25 degree C +_5 degrees C for 30 mins

Pulse Discharge Current: 450 amp for 1.0s

Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

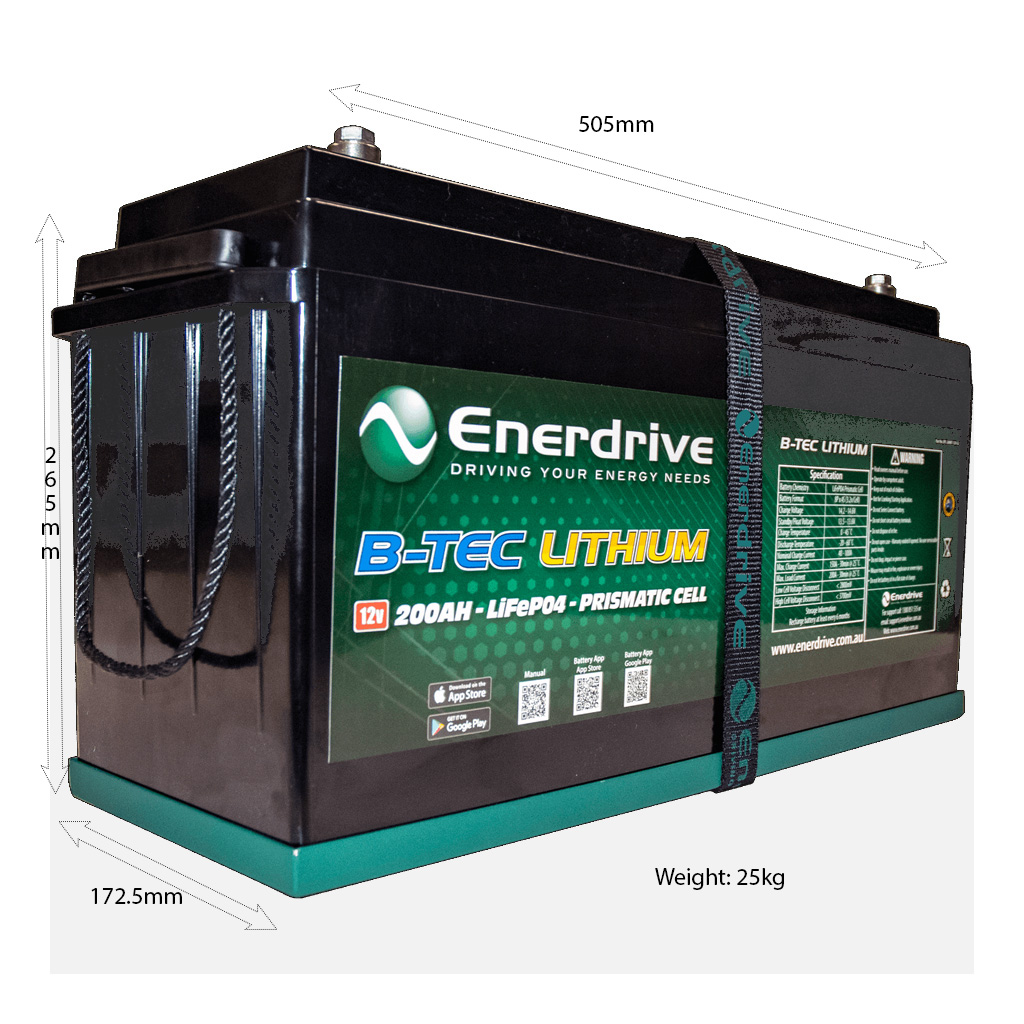

Dimensions: 505mm (L) x 172.5mm (W) x 265mm (H)

Weight: Approx 25kgs

Case Construction: Hi Impact ABS Plastic

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

Size & Weight Savings

Lithium v AGM Capacities;

100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium G2 = 320Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

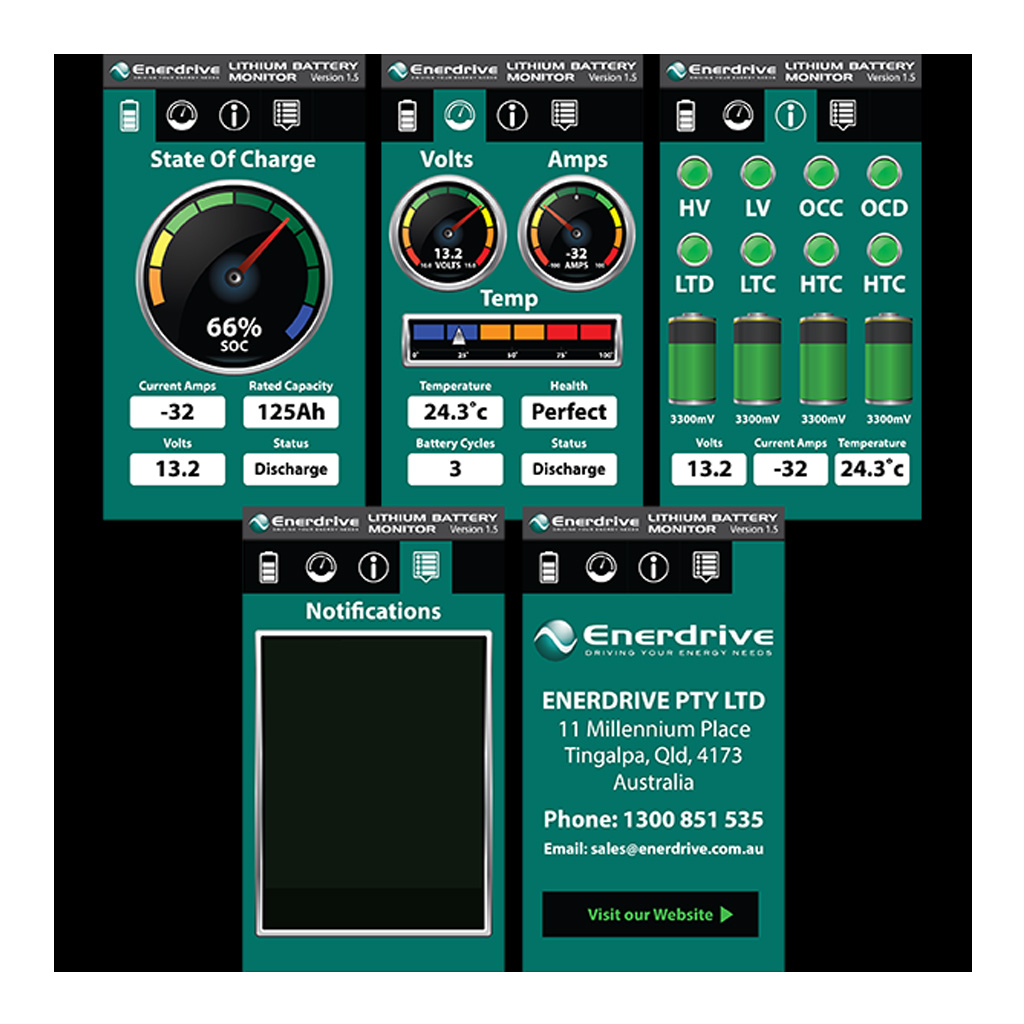

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information

5 Year Warranty

Out of stock

SKU: EPL-200BT-12V-G2 Categories: Batteries, Lithium Deep Cycle Tags: Enerdrive, Enerdrive 200 amp Lithium Battery, LIFEPo4, Lithium Battery

Brands:Enerdrive

Description
Additional information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Dimension	Original	Generation 2
Length	485mm	505mm
Width	170mm	172.5mm
Height	245mm	265mm

The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 200Ah battery is able to accept a maximum inverter capacity of 2600W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
