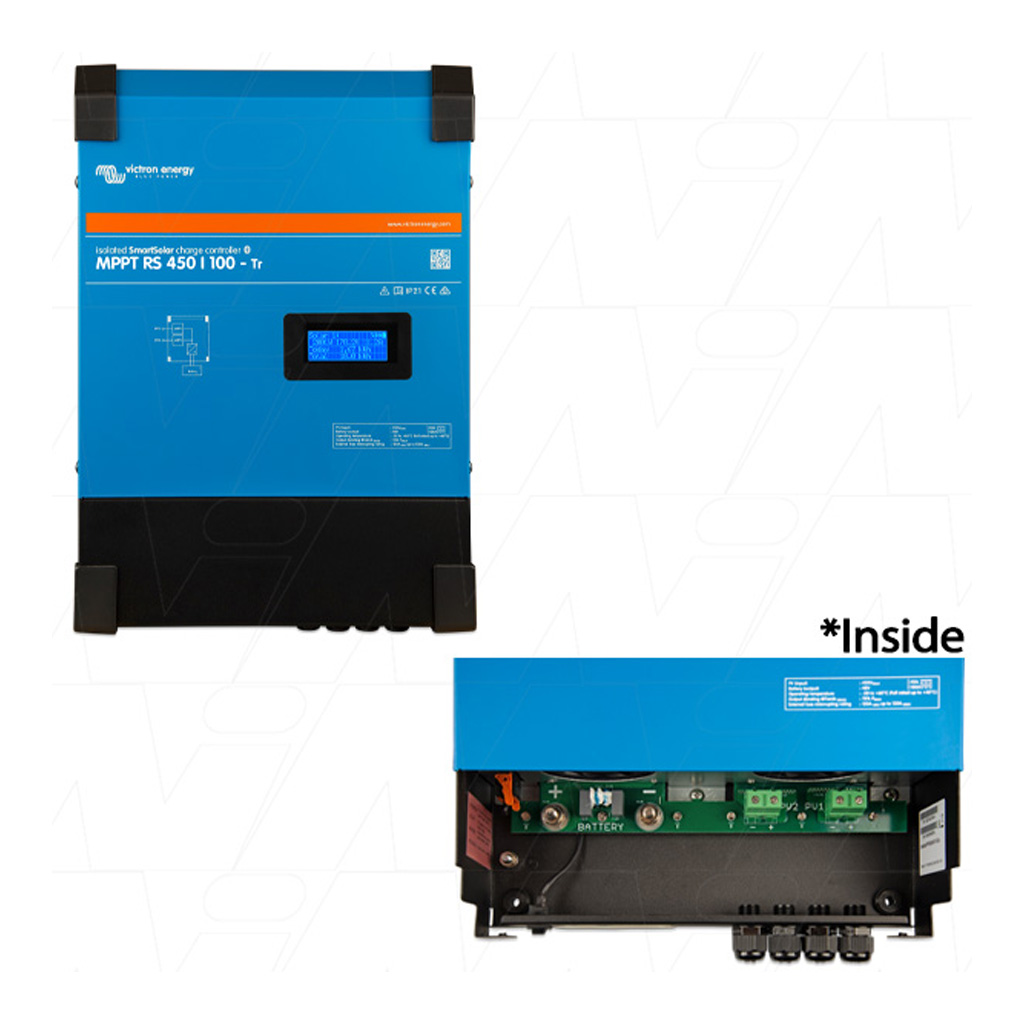

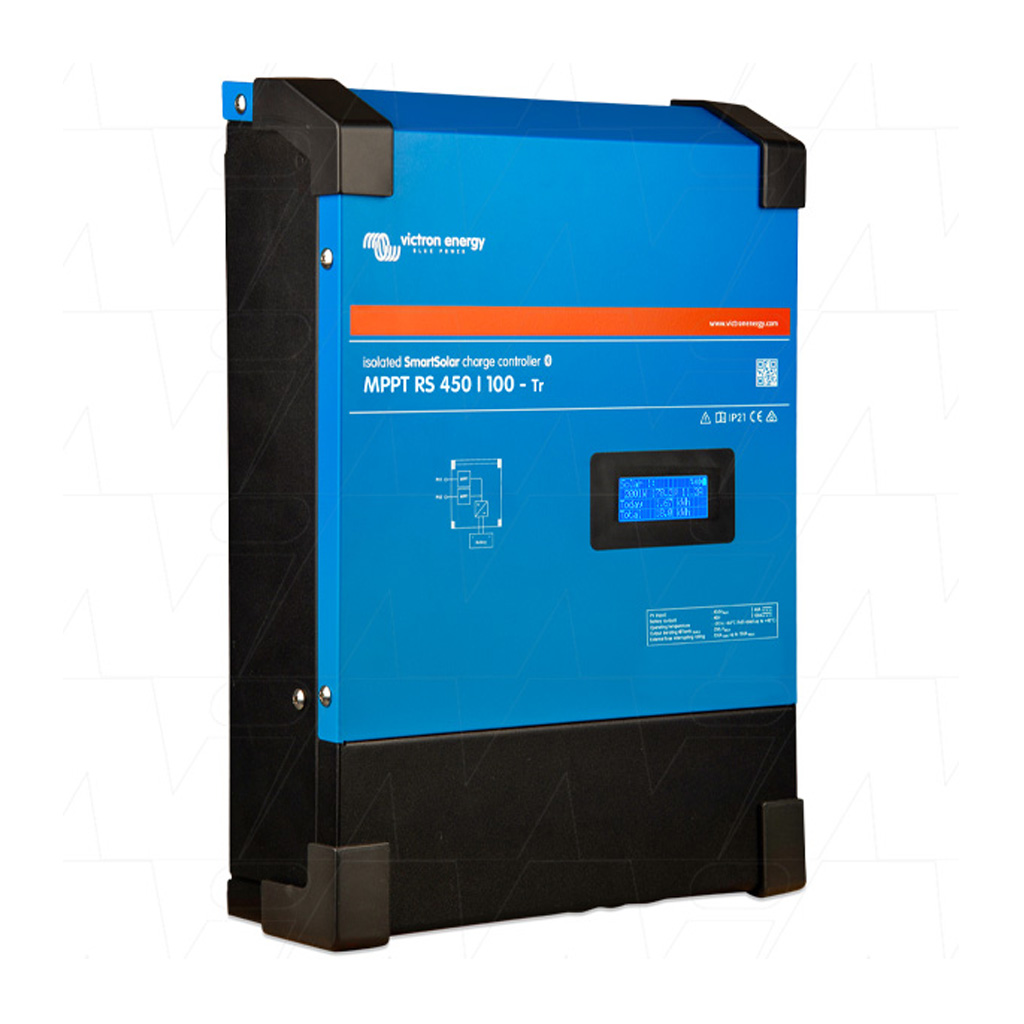

Victron Smart Solar MPPT RS 450/100 -TR


or 4 payments of $499.75 with Afterpay

Battery voltage 48 V

Rated charge current 100 A

Maximum charge power 5,8 kW at 57,6 V

Charge voltage ‘absorption’ Default setting: 57,6 V (adjustable)

Charge voltage ‘float’ Default setting: 55,2 V (adjustable)

Programmable voltage range Minimum: 36 V Maximum: 62 V

Charge algorithm Multi-stage adaptive (adjustable)

Battery temperature sensor Included

Maximum efficiency 96 %

Self-consumption 15 mA


Maximum DC PV voltage 450 V

Start-up voltage 120 V

MPPT operating voltage range 80 – 450 V (1)

Number of trackers 2

Max. PV operational input current 18 A per tracker

Max. PV short circuit current (2) 20 A per tracker

Maximum PV array size per tracker (3) 7200 Wp (450 V x 20 A) (3)

PV Isolation fail level (4) 100 kΩ


Synchronised Parallel Operation Yes, up to 25 units with VE.Can

Programmable relay (5) Yes

Protection PV reverse polarity

Output short circuit Over temperature

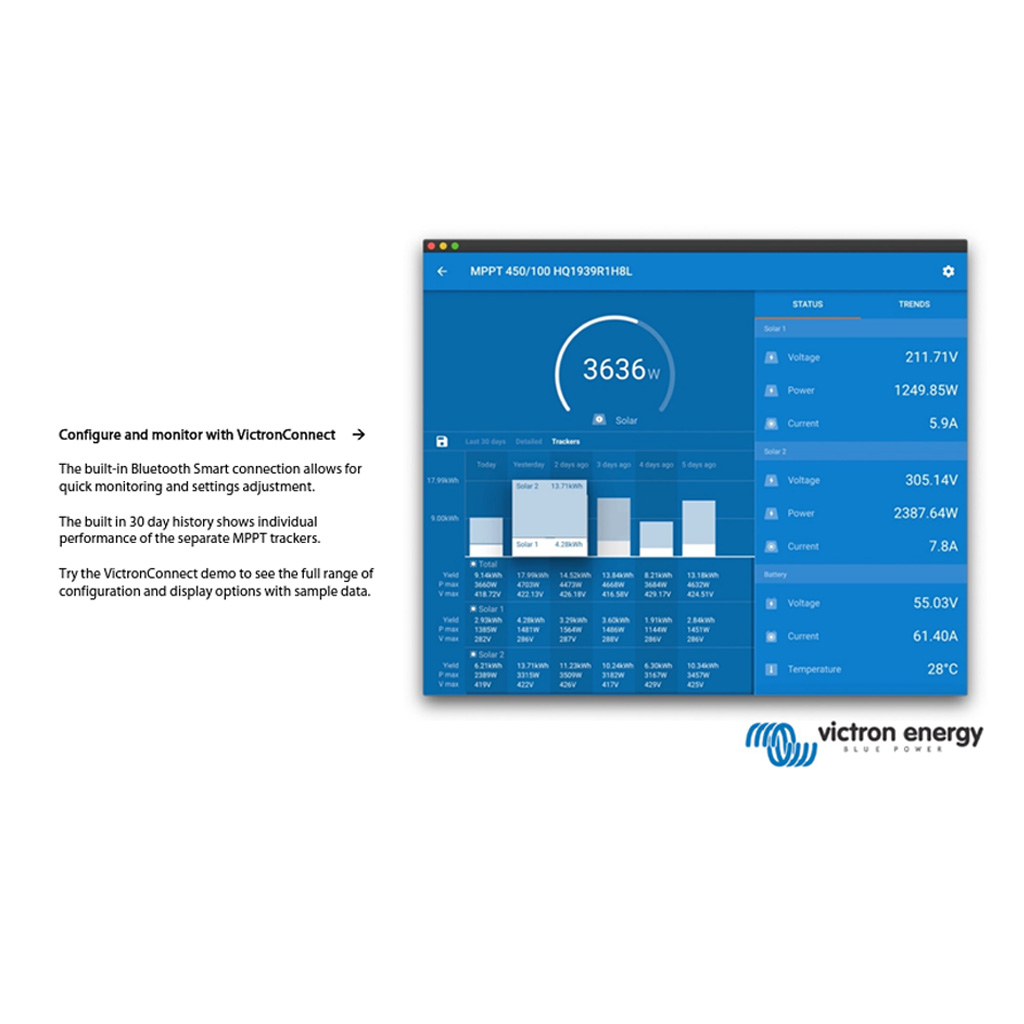

Data communication VE.Direct port, VE.Can port & Bluetooth (6)

General purpose analogue/digital in port Yes, 2x

Remote on-off Yes

Operating temperature range -40 to +60°C (fan assisted cooling)

Humidity (non-condensing) max 95%


Material & Colour steel, blue RAL 5012

Protection category IP21

Battery-connection M8 bolts

Power terminals PV input 2.5…16mm2

Weight 7.9 kg 13.7 kg

Dimensions (h x w x d) in mm 440 x 313 x 126

In stock (can be backordered)
