Invicta Lithium Deep Cycle Batteries – Manufactured to the Highest Possible Standards
Invicta lithium batteries have achieved two levels of IEC certification. This includes IEC62619 on selected models and IEC 62133/UL 1642 on the entire range.
IEC 62619 certification is an independent test examining the safety and performance of an entire lithium battery, all its cells and BMS. The certification process includes a rigorous schedule that ensures the battery will not internally short circuit or propagate and can withstand high-impact events, thermal abuse (extreme heat and cold), and over-charge or over-discharge situations. The certification also includes a factory audit undertaken annually to ensure components and processes continue to apply to the highest quality standards.
IEC 62133/UL 1642 certification, which is available on the entire range, is similar to IEC 62619 but at a cell level. At an absolute minimum, a battery should have this level of certification. This guarantees the safety and overall performance of the cells. Many batteries don’t have any certifications or irrelevant certifications, so you should check claimed certifications.

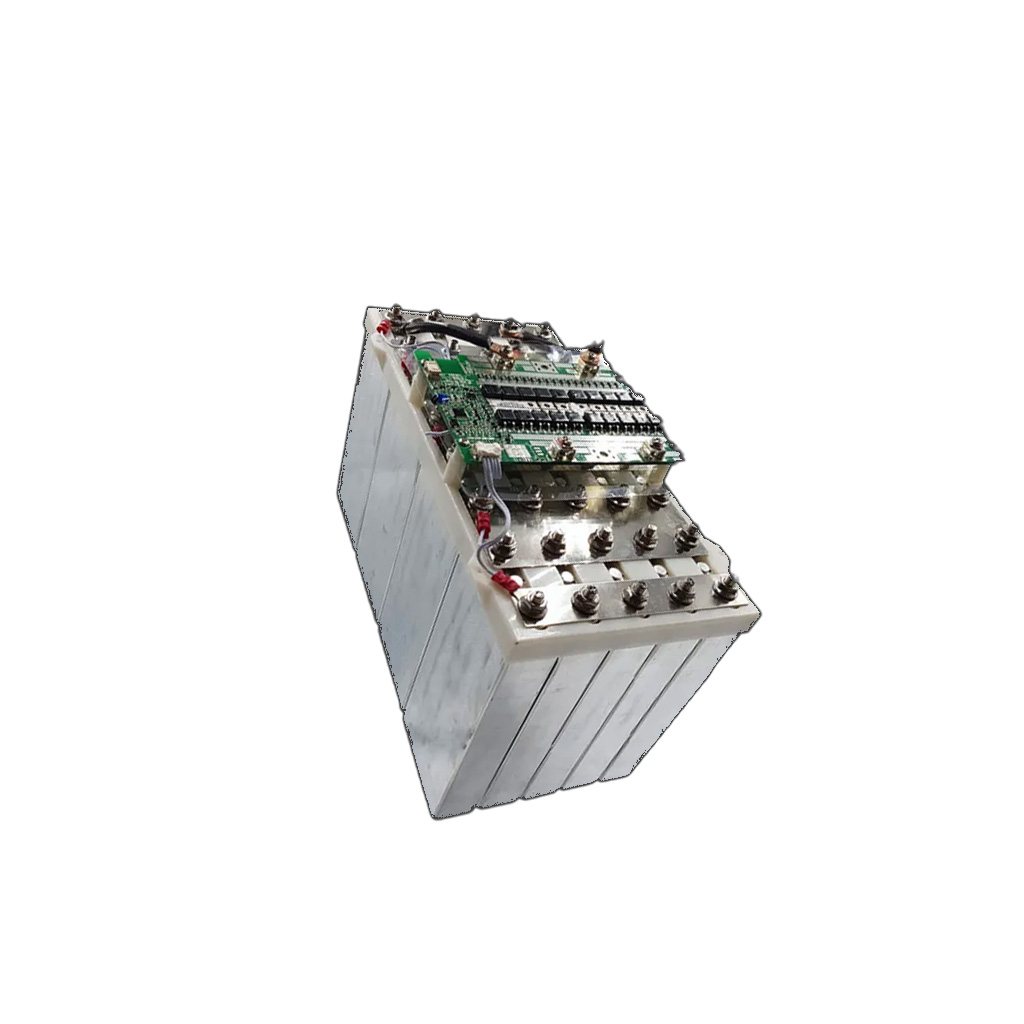

Unlike some other cheap batteries that use a separately sourced Battery Management System (BMS), the Invicta range is an integrated component bolted to the battery and developed in the same factory as our cells. Engineered to meet the needs of the Australian market, it allows a high-discharge rate and is a critical component of the battery that automatically protects the battery from over-charge/discharge, temperature, and short circuit. Bluetooth monitoring options are also available, and our 12V200Ah and 12V300Ah batteries are specially designed to overcome inverter start-up issues experienced on larger inverters.
Our batteries include the same BMS on batteries that have been tested to IEC 62619 standards and therefore have undergone the same stringent testing as the rest of the battery to ensure they are of the highest quality.
The Bluetooth feature is available on any battery in the Invicta range that ends in BT and all Invicta Hybrid Starter batteries. It allows the user to conveniently monitor critical information about the battery, which includes charge, discharge, capacity, temperature, voltage and BMS safety features. All via a free application which can be downloaded on any Apple or Android device. This can be especially useful as conventional testing can be difficult and inaccurate. It can also help if the battery has been placed in a hard to reach spot, like behind the seat or battery box, as monitoring can be achieved from 5 meters away. The Invicta Bluetooth cannot be put in series, and for this reason, we have made available a 24V and 36V option to ensure you have access to a solution that will be suitable. There are separate apps for both Invicta Lithium and Invicta Hybrid, this due to the different chemistry, performance and features available on each battery.
We are so confident in Invicta lithium Deep Cycle batteries that a 7-year full replacement warranty is now available in approved applications. This is backed by SPB, a company with over 25 years in the energy storage industry.
We can offer this level of warranty because we have had Invicta lithium batteries independently tested and it performed above and beyond the expectations of our technical team. Invicta’s testing easily completed 2000+ cycles at 98% DoD over 1000 days of operation while being subjected to Australian conditions where there were significant temperature variations.
When combined with our IEC Certification and robust construction, our customers can be confident they can do what they do, time and time again knowing they have 2000+ genuine cycles.
Most lithium batteries do conduct testing, but it is not to the extent and level of Invicta’s. It is usually held in a controlled environment, and only to the first 500 cycles. They then project the remaining cycles and performance based on simulations. Further to this, the cycle life tests undertaken in the factory are normally only performed on the cells and not the battery as a whole.
Invicta Hybrid LiFePO4 Starter
Model | Features | Length | Width | Height/Terminal Height | Terminal Type | Nominal Voltage | Nominal Capacity | Max Discharge Current | CCA | Weight (Kgs) |
|
---|---|---|---|---|---|---|---|---|---|---|---|
SNLH80D | Jump start functionality | 260 | 172 | 210/220 | M8 | 12.8 | 60 | 200 | 1000 | 7.9 | |
SNLHLN3 | Jump start functionality | 278 | 174 | 190 | SAE | 12.8 | 60 | 200 | 1000 | 7.9 | |
SNLH95D | Jump start functionality | 305 | 172 | 203/244 | M8 | 12.8 | 80 | 200 | 1200 | 10.2 | |
SNLH95DL | Jump start functionality | 305 | 172 | 203/244 | M8 | 12.8 | 80 | 200 | 1200 | 10.2 | |
SNLH31H | Jump start functionality | 330 | 168 | 220/222 | M8 | 12.8 | 100 | 200 | 1200 | 10.2 | |
SNLHLN4MAX | Jump start functionality | 315 | 174 | 190 | SAE | 12.8 | 60 | 800 | 1000 | 8.3 | |
SNLHMAX | Jump start functionality | 306 | 168 | 211 | M8 | 12.8 | 80 | 800 | 1400 | 10.3 | |
SNLHMAXL | Jump start functionality | 306 | 168 | 211 | M8 | 12.8 | 80 | 800 | 1400 |
Invicta Deep Cycle LiFePO4 Batteries
Model | Description | Length | Width | Height | Terminal Type | Nominal Voltage | Nominal Capacity | Max Discharge Current | Max Series/Parallel Config | Weight (Kgs) |
|
---|---|---|---|---|---|---|---|---|---|---|---|
SNLFT12V50BT | Invicta 12V50AH Slimline with Bluetooth | 277 | 106 | 222 | M6 | 12.8 | 50 | 50 | 4P | 6.0 | |
SNLFT12V100BT | Invicta 12V100AH Slimline with Bluetooth | 551 | 109 | 239 | M8 | 12.8 | 100 | 95 | 4P | 12.4 | |
SNLFT12V150BT | Invicta 12V150AH Slimline with Bluetooth | 561 | 125 | 316 | M8 | 12.8 | 150 | 180 | 4P | 18.0 | |
SNLFT24V25BT | Invicta 24V25AH Slimline with Bluetooth | 277 | 106 | 222 | M6 | 25.6 | 25 | 25 | 4P | 6.0 | |
SNL12V9S | Invicta 12V9AH | 151 | 65 | 65 | F2 | 12.8 | 9 | 9.0 | 4P or 4S | 1.2 | |
SNL12V12S | Invicta 12V12AH with 4 series functionality | 151 | 98 | 96 | F2 | 12.8 | 12 | 15.0 | 4P or 4S | 1.6 | |
SNL12V20S | Invicta 12V20AH with 4 series functionality | 180 | 76 | 166 | M6 | 12.8 | 20 | 25.0 | 4P or 4S | 3.0 | |
SNL12V20BT | Invicta 12V20AH with Bluetooth | 180 | 76 | 166 | M6 | 12.8 | 20 | 30.0 | 4P | 3.0 | |
SNL12V24S | Invicta 12V24AH with 4 series functionality | 166 | 176 | 125 | M6 | 12.8 | 24 | 30.0 | 4P or 4S | 3.4 | |
SNL12V40S | Invicta 12V40AH with 4 series functionality | 194 | 132 | 170 | M6 | 12.8 | 40 | 50.0 | 4P or 4S | 5.5 | |
SNL12V40BT | Invicta 12V40AH with Bluetooth | 194 | 132 | 170 | M6 | 12.8 | 40 | 50.0 | 4P | 5.5 | |
SNL12V75S | Invicta 12V75AH with 4 series functionality | 260 | 169 | 215 | M8 | 12.8 | 75 | 50.0 | 4P or 4S | 9.8 | |
SNL12V75BT | Invicta 12V75AH with Bluetooth | 260 | 169 | 215 | M8 | 12.8 | 75 | 50 | 4P | 9.8 | |
SNL12V100S | Invicta 12V100AH with 4 series functionality | 306 | 168 | 216 | M8 | 12.8 | 100 | 95.0 | 4P or 4S | 12.2 | |
SNL12V100BT | Invicta 12V100AH with Bluetooth | 306 | 168 | 216 | M8 | 12.8 | 100 | 95.0 | 4P | 12.2 | |
SNL12V125S | Invicta 12V125AH with 4 series functionality | 318 | 165 | 215 | M8 | 12.8 | 125 | 95.0 | 4P or 4S | 14.8 | |
SNL12V125BT | Invicta 12V125AH with Bluetooth | 318 | 165 | 215 | M8 | 12.8 | 125 | 100 | 4P | 14.8 | |

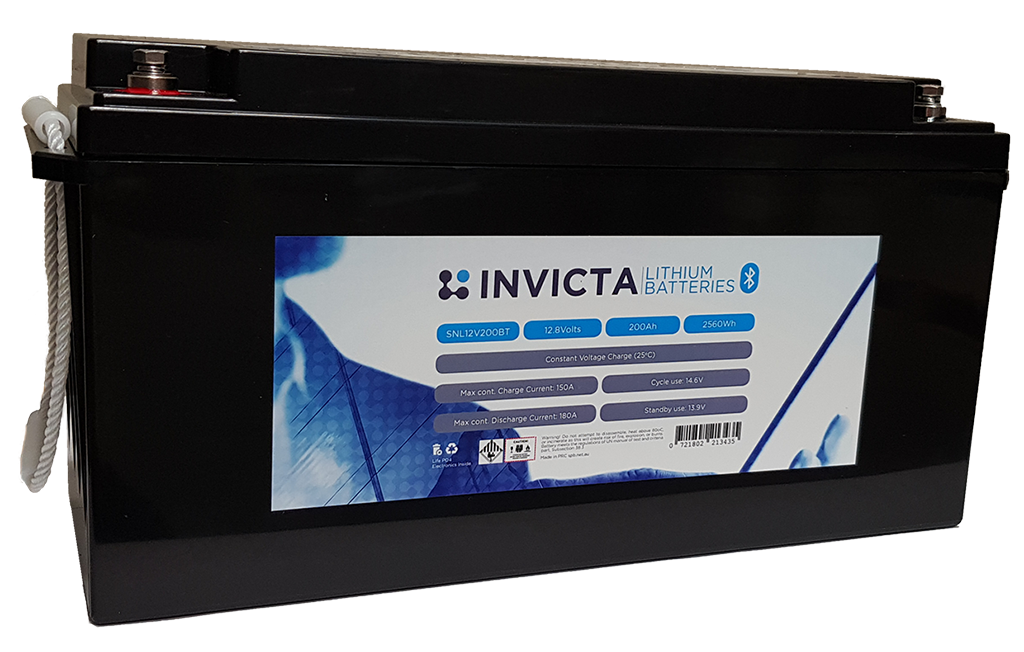

SNL12V200BT | Invicta 12V200AH with Bluetooth | 483 | 170 | 241 | M8 | 12.8 | 200 | 180 | 4P | 24.2 | |
SNL12V300BT | Invicta 12V300AH with Bluetooth | 518 | 271 | 222 | M8 | 12.8 | 300 | 200.0 | 4P | 35.0 | |
SNL24V12 | Invicta 24V12AH with 4 Parallel Functionality | 166 | 176 | 125 | M6 | 25.6 | 12 | 10 | 4P | 3.40 | |
SNL24V50BT | Invicta 24V50AH with Bluetooth | 318 | 165 | 215 | M8 | 25.6 | 50 | 50 | 4P | 12.8 | |
SNL24V100BT | Invicta 24V100AH with Bluetooth | 485 | 170 | 245 | M8 | 25.6 | 100 | 100 | 4P | 24.2 | |
SNL24V150BT | Invicta 24V150AH with Bluetooth | 518 | 271 | 222 | M8 | 25.6 | 150 | 95 | 4P | 35.0 | |
SNL36V50BT | Invicta 36V50AH with Bluetooth | 485 | 170 | 245 | M8 | 38.4 | 50 | 50 | 4P | 17.0 | |
SNL36V100BT | Invicta 36V100AH with Bluetooth | 520 | 269 | 220 | M8 | 38.4 | 100 | 100 | 4P | 37.7 | |
SNL48V25 | Invicta 48V25AH with 4 parallel functionality | 318 | 165 | 215 | M8 | 51.2 | 25 | 50 | 4P | 12.2 | |
SNL48V75 | Invicta 48V75AH with 4 parallel functionality | 520 | 269 | 221 | M8 | 51.2 | 75 | 100 | 4P | 37.7 |
