Trailer Vision 12 Pin Trailer Socket and 50a Anderson Style Plug Duo

Name: Trailer Vision 12 Pin Trailer Socket and 50a Anderson Style Plug Duo – Bluebar Industries Australia
SKU: TV-14569-50-12
Price: 44.50 AUD
Availability: InStock

$44.50 inc gst

or 4 payments of $11.13 with Afterpay

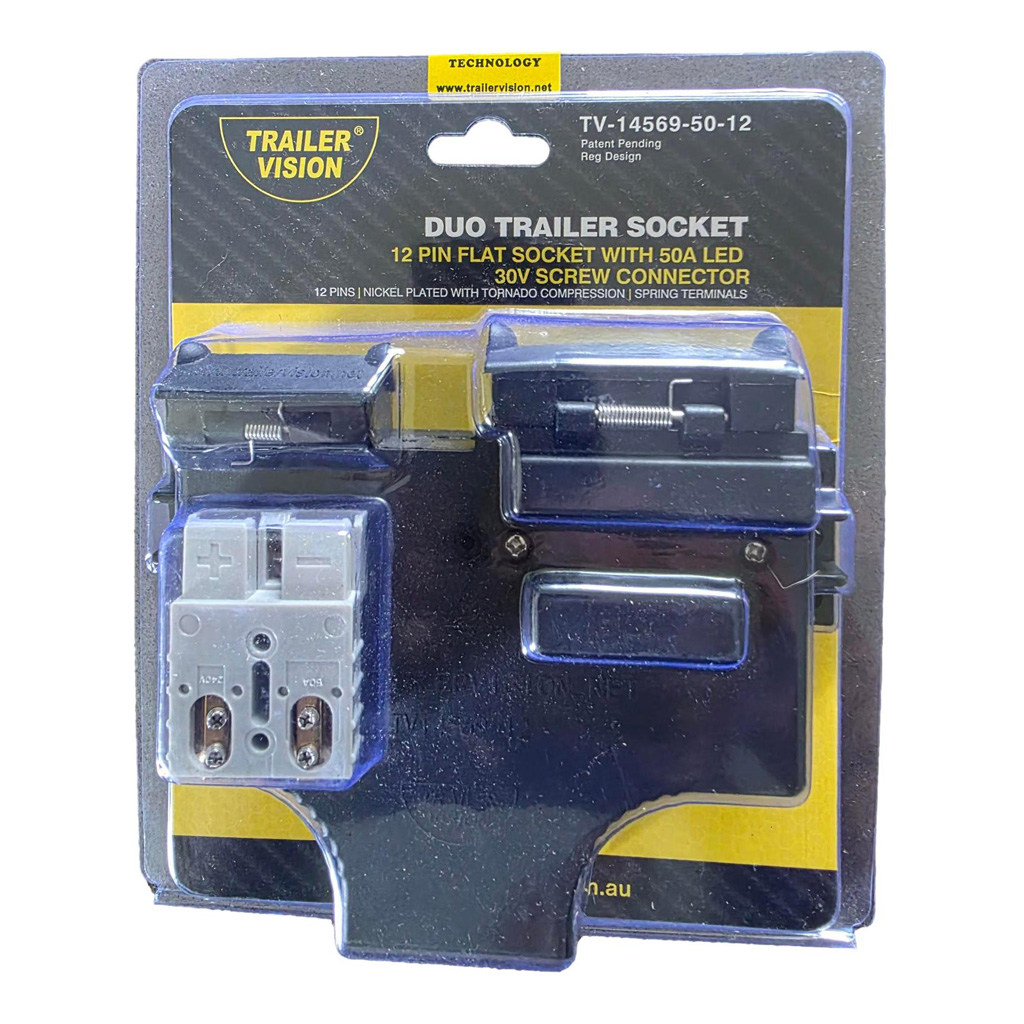

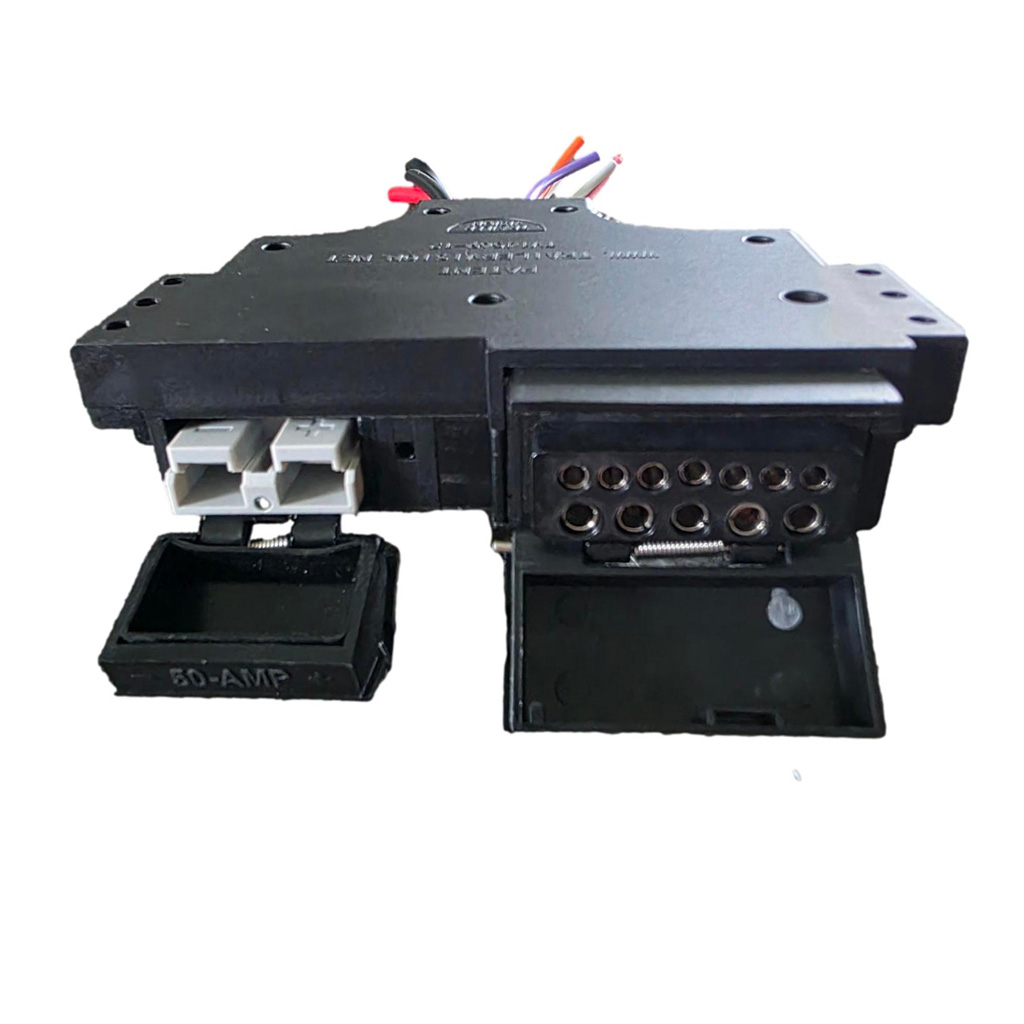

12 Pin flat trailer socket with a removable 50 amp power connector (50 amp Anderson Style Plug) in a spring loaded locking cover, this all in one kit makes it easy to install

The trailer socket features new technology with Tornado compression spring terminals to improve the reliability of electrical contact connection pins between plug and socket

The 12 pin socket mates with all 12 pin plugs

The 50 amp electrical connector (50a Anderson Style Plug) mates with other 50 amp grey Anderson Plugs

Kit Includes

1 x 12 pin Flat Trailer Socket / 50 amp connector cover assembly

1 x Removable 50 amp grey 4 screw connector with LED

2 x Locking tabs

6 x Stainless Steel nuts and bolts provided for installation

SKU: TV-14569-50-12 Categories: 12/24v Products & Access, Accessories, Anderson Covers, Electrical Connectors, Trailer Products Tags: 12 Pin Trailer Socket, 12 Pin Trailer Socket and 50 amp Anderson Plug, Trailer Vision, TV-14569-50-12

Brands:Trailer Vision

Brand: Trailer Vision

Description
Additional information

Trailer Vision 12 Pin Trailer Socket and 50a Anderson Style Plug Duo

You will need some tools to wire and assemble this product. 1 x small Phillips screw driver, Sharp knife or scissors

Take note of where screws come out of the housing as you disassemble.

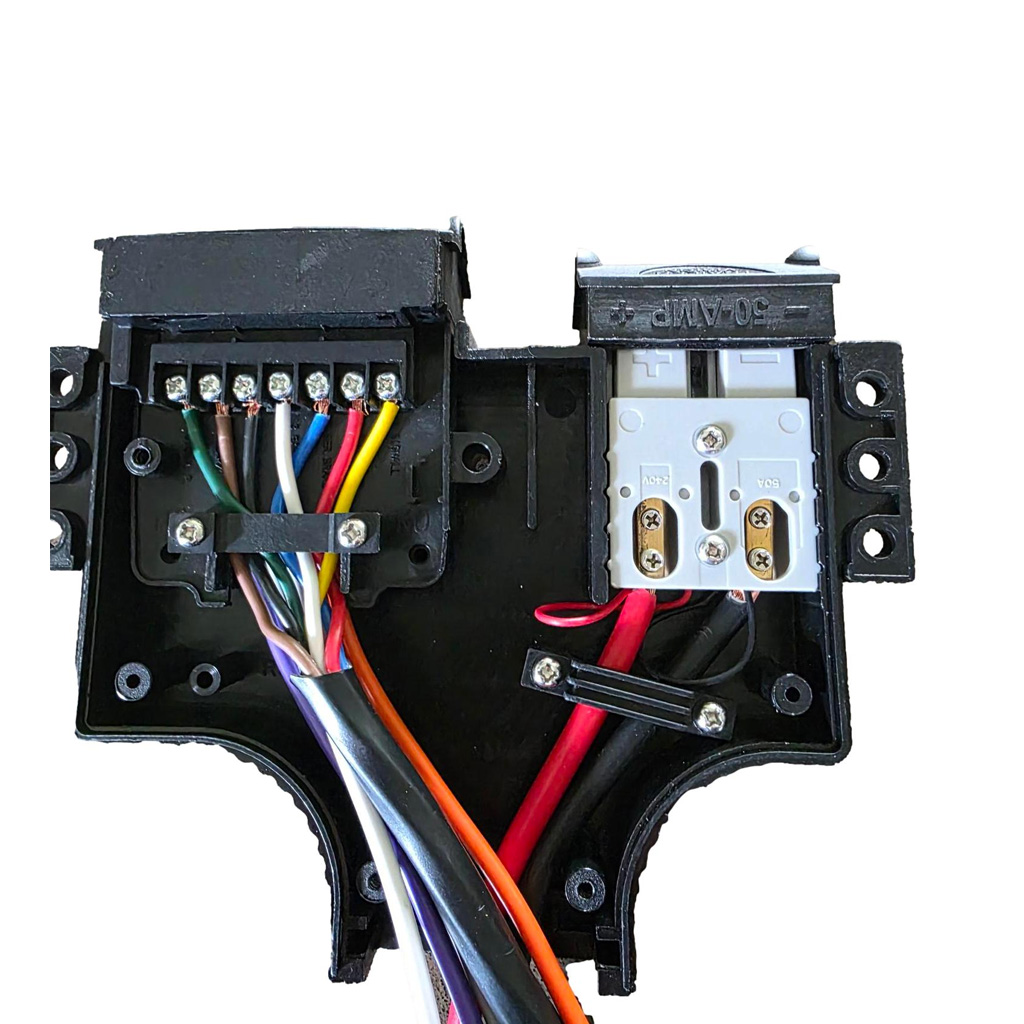

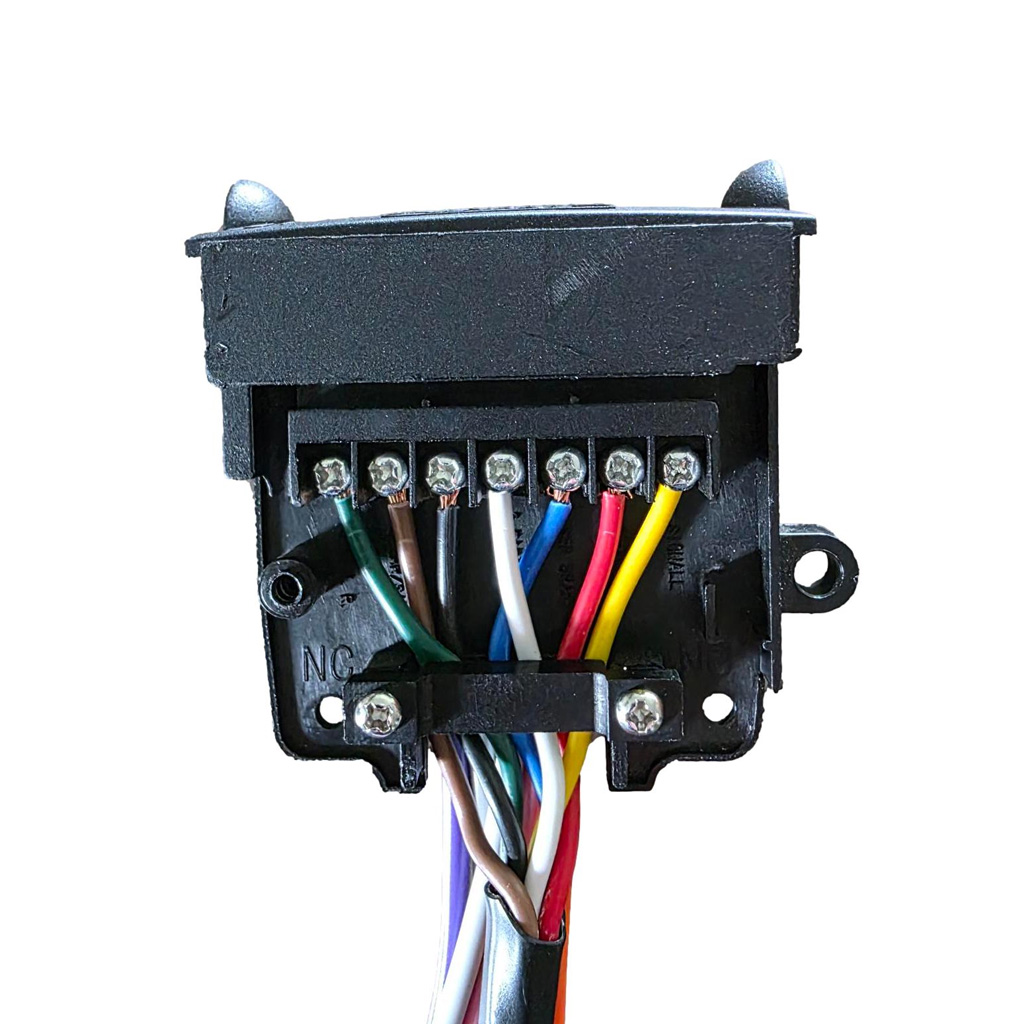

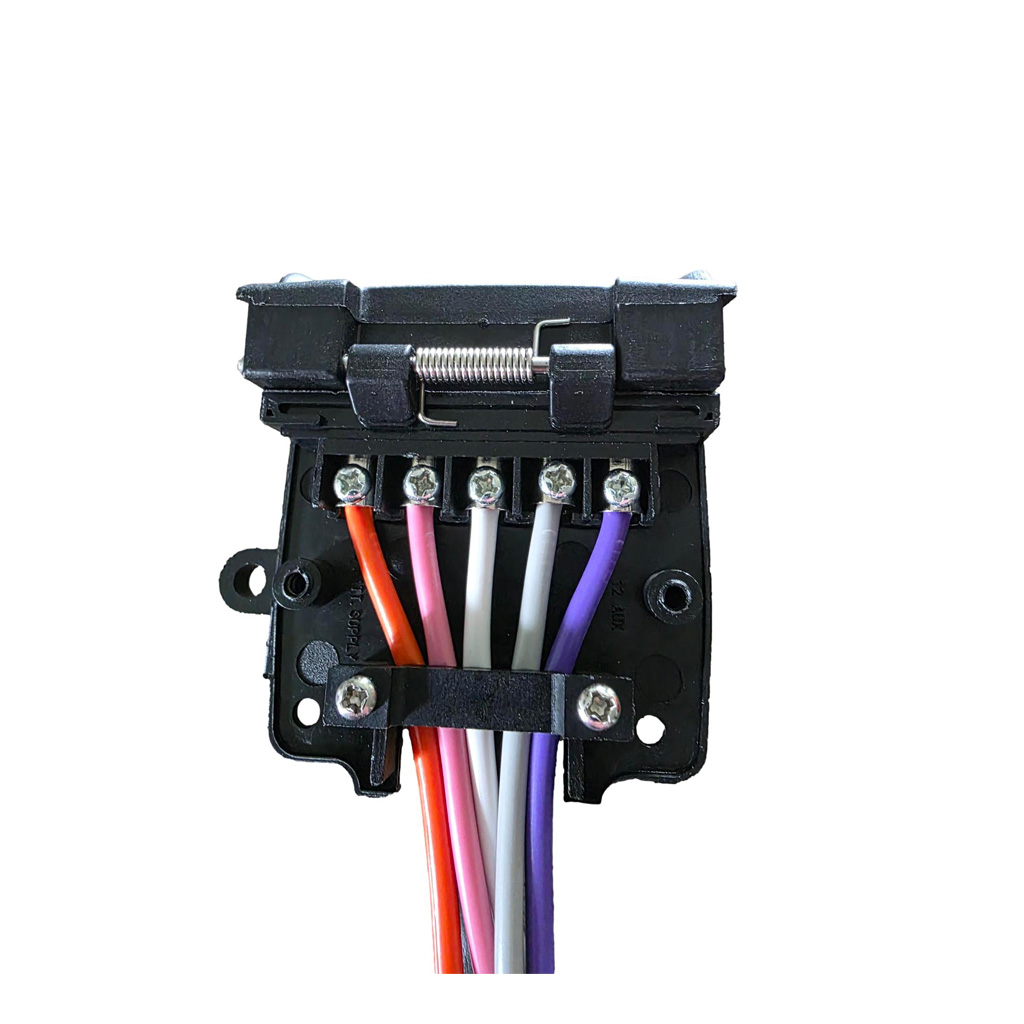

The images show 7 core 3mm wiring for the 7 Pin side of trailer socket, 5mm wiring for the 12 Pin side of trailer socket and 8 B&S (7.59mm2) cable for 50 amp connector.

If you are wanting to use 6 B&S (13mm2) twin core cable for the 50 amp plug I would recommend stripping the outer rubber sheath back to just before the rubber seals and running it through the housing as 2 x single cores
