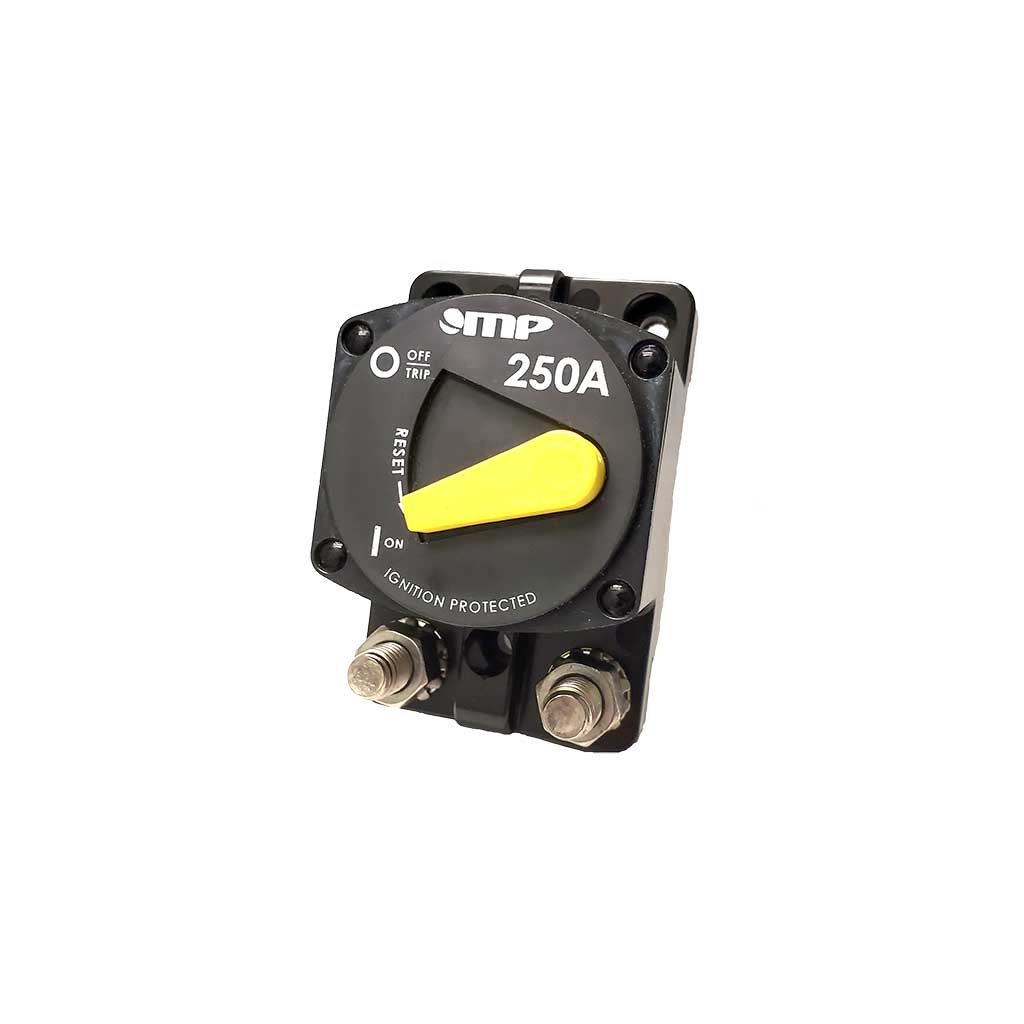

MP Circuit Breaker 250 amp Marine Grade Surface Mount Resettable 12-48VDC
$225.50 inc gst
or 4 payments of $56.38 with Afterpay
MP Circuit Breaker 250 amp Marine Grade Surface Mount Resettable 12-48VDC
The industries highest amperage Marine Grade Circuit Breaker with 5,000A (U3) interrupt capacity
Single pole thermal circuit breaker.
Manual reset with On-Off switch function.
Highly visible lever
Single lever for manual reset switching operations.
Capable of withstanding 2000 on/off cycles at 48VDC.
Ignition protected weatherproof and IP66 rated.
Marine grade corrosion resistive materials
3/8-16 stainless steel threaded studs.
Extensive ampere rating choice 25A through to 250A.
Designed and made in USA.
In stock (can be backordered)
SKU: 875-S2-250
Categories: Circuit Breaker, Fuse Holders, Fuses & Circuit Breakers
Tags: 250 amp Circuit Breaker, Circuit Breaker, Manual Reset Circuit Breaker, Marine Grade Circuit Breaker, Mechanical Product, MP
Brand: Mechanical Product
Brands:Mechanical Product
MP Circuit Breaker 250 amp Marine Grade Surface Mount Resettable 12-48VDC
Voltage: I.R.: 48VDC 5kA at14VDC, 3kA at 28VDC, 1.5kA at 48VDC
Reset Mechanism: Type TIII, Manual reset & switchable.
Operating Temp: -40°C to 85 °C.
Materials:Thermoset Polyester.
Terminal Hardware: Stainless nuts & lock washers installed.

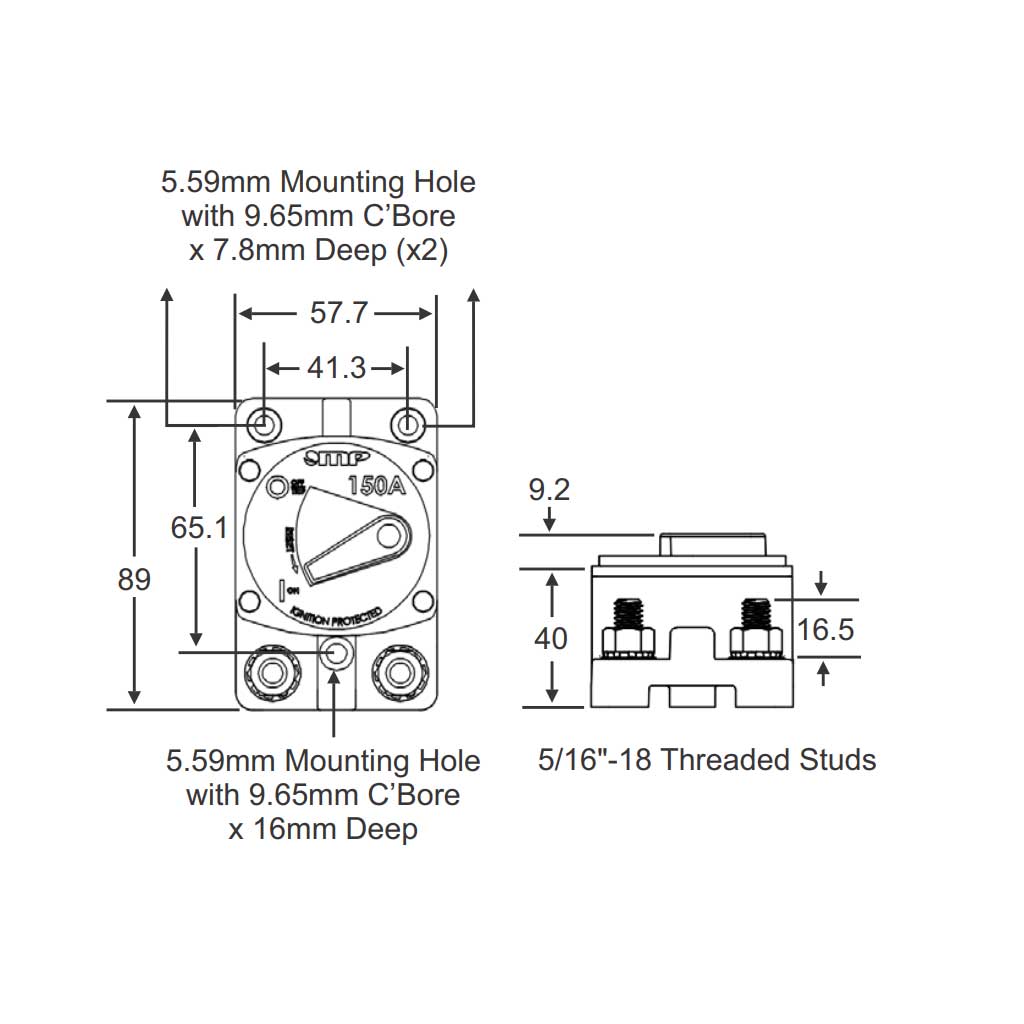

Termination : Standard 5/16”-18 (25A-200A), 3/8″-16 (225A-250A).
Termination : Optional 3/8″-16 (25A-200A).
Termination Notes: ” Line” and “Load” markings are not required.
The internal circuit breaker design has double contacts so that it is make and break .
The circuit is symmetrical so you can cable the “Line” and “Load” either way
Torque Rating: 75 in-libs for 5/16″-18, 100 in-libs for 3/8″-16
Ingress Protection Rating: I 66 P SAE J1171 Ignition Protected:
Approvals : Pending J1171 ABYC E-11 , J553, , UL 1077
| Weight | 100.4 kg |
|---|---|
| Brand | |
| Part No. |
