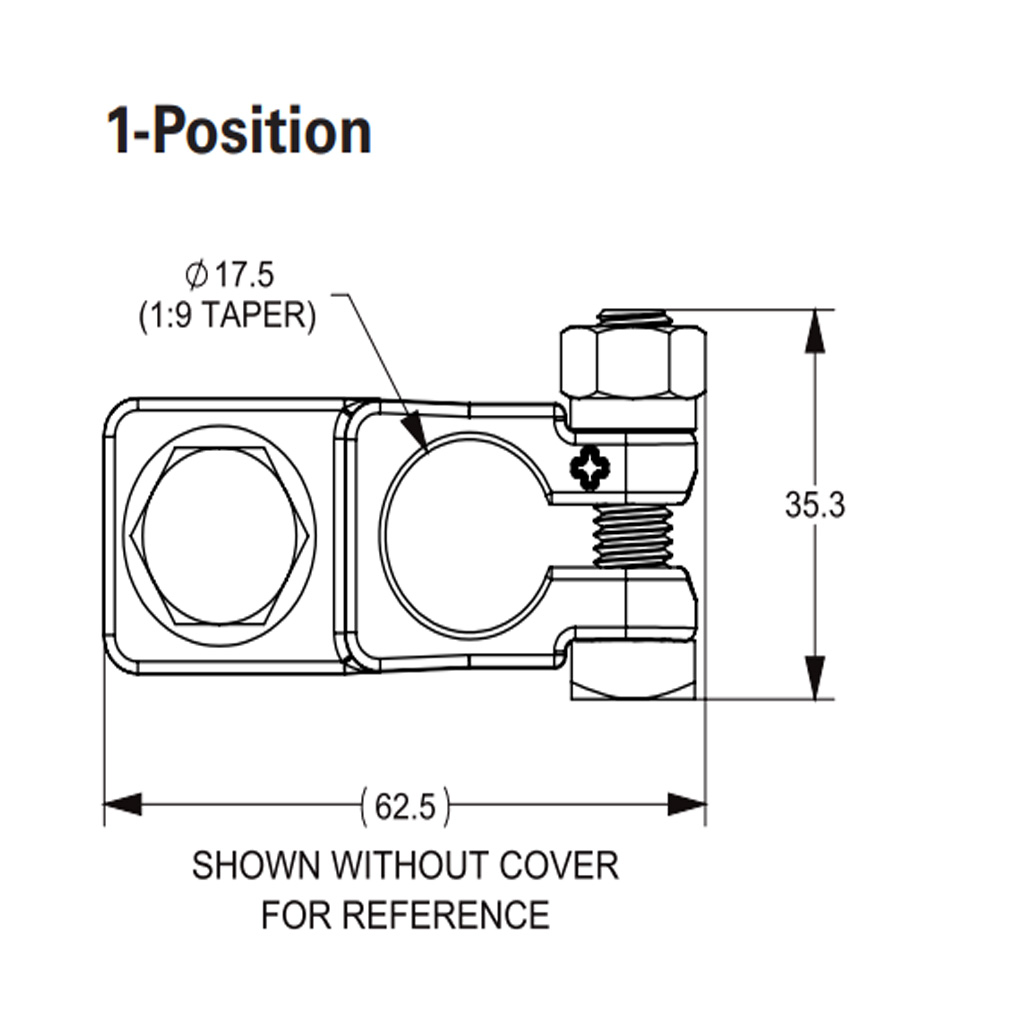

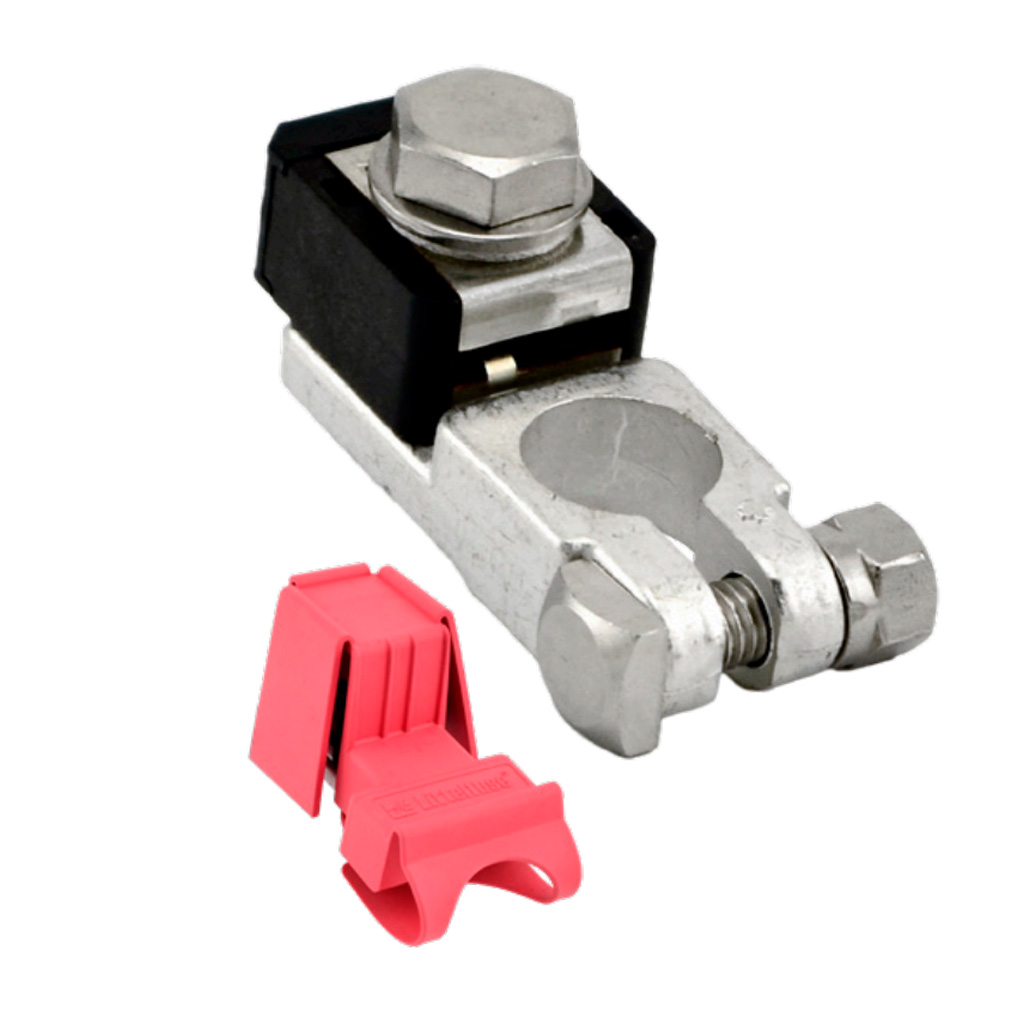

Mounts directly to post style battery terminal.
Rugged forged brass design stands up to heavy cables and harsh battery box or under hood conditions.
Special insulated bolt for higher quality, longer lasting electrical connection.
Fuses 40A-250A circuits protect circuits from prolonged overload current conditions.
Fuses 300A-600A act as a short circuit protector, allowing high inrush currents but protecting from system faults.
The compact design of the BMZF optimizes system cost by eliminating additional cables, separate high current fuse holders and the required labor to assemble and install traditional fuse holders into crowded spaces.
The BMZF Series accepts Littelfuse proprietary M10 ZCASE fuses that are available in ratings from 80-600A.

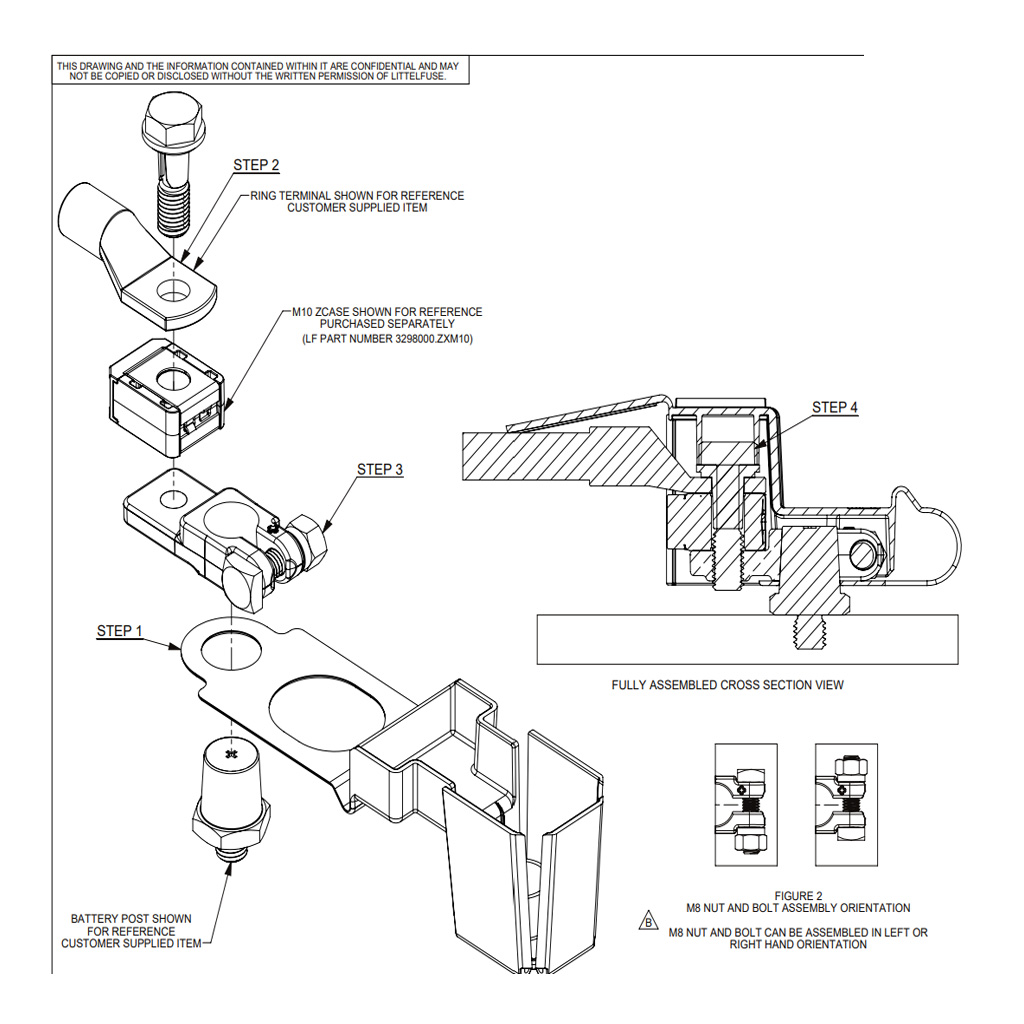

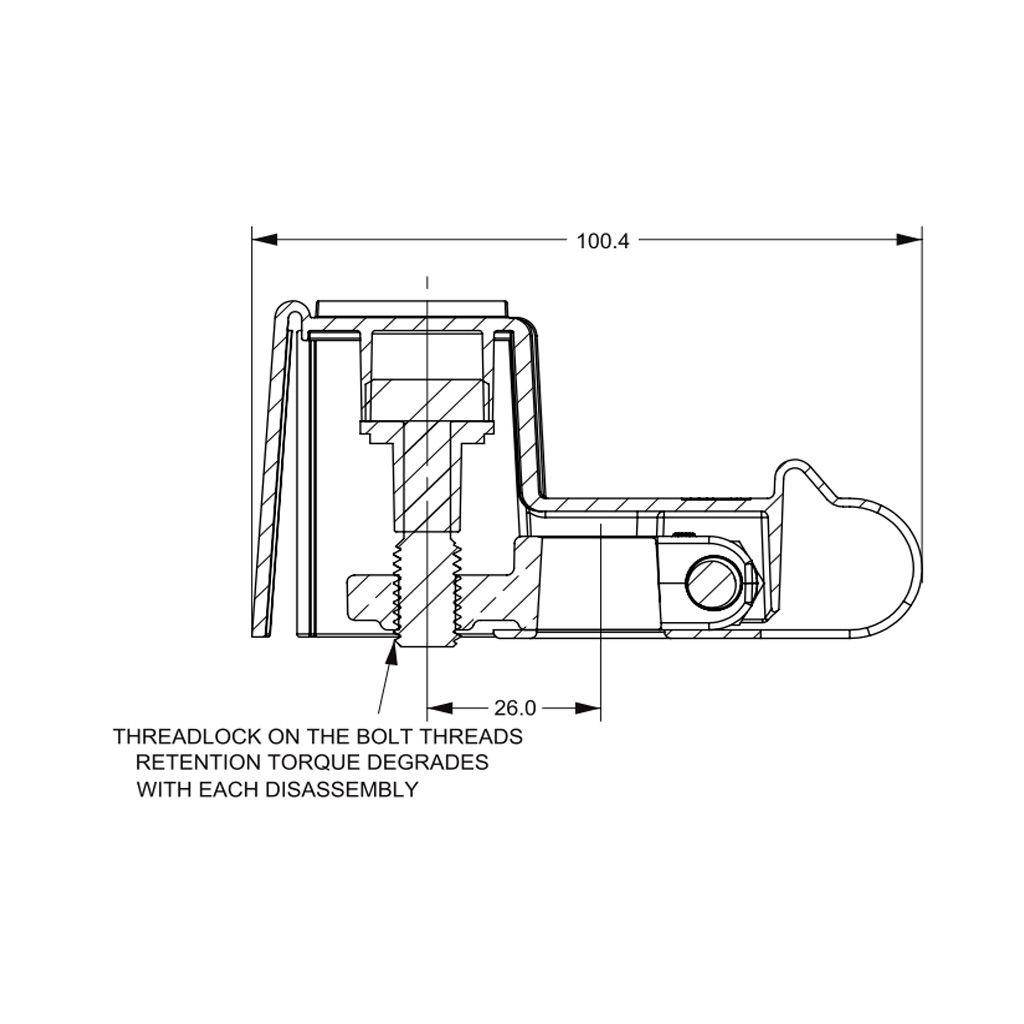

The special insulated bolt has a metal bolt head which allows for proper torque application to make a reliable high current connection.
Unlike with plastic insulators, the mineral isolating washer prevents long term torque reduction due to creep.
The integrated isolation shell prevents current from bypassing the fuse element.
