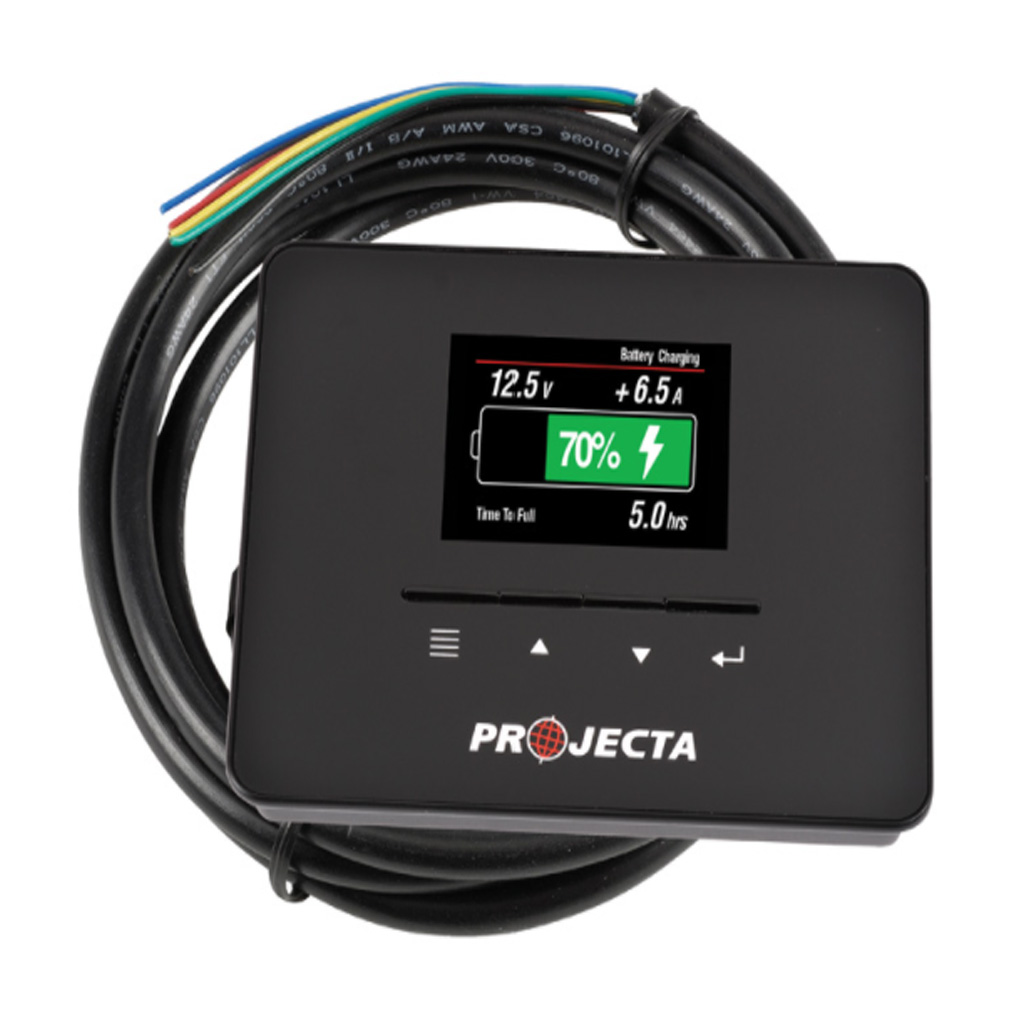

A sophisticated, full colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status.

Ideal for camper trailer and caravan interiors.

CURRENT DRAW – 12V/1.5mAdc

INPUT VOLTAGE RANGE – 6.0–17.0Vdc

MAX CURRENT – 320A

BATTERY CAPACITY SUPPORTED – 5-320AH

DISPLAY RESOLUTION – Current: 0.1A, Voltage: 0.1V, Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED – Wet/AGM/Gel/Calcium

CABLE LENGTH – 1.5m

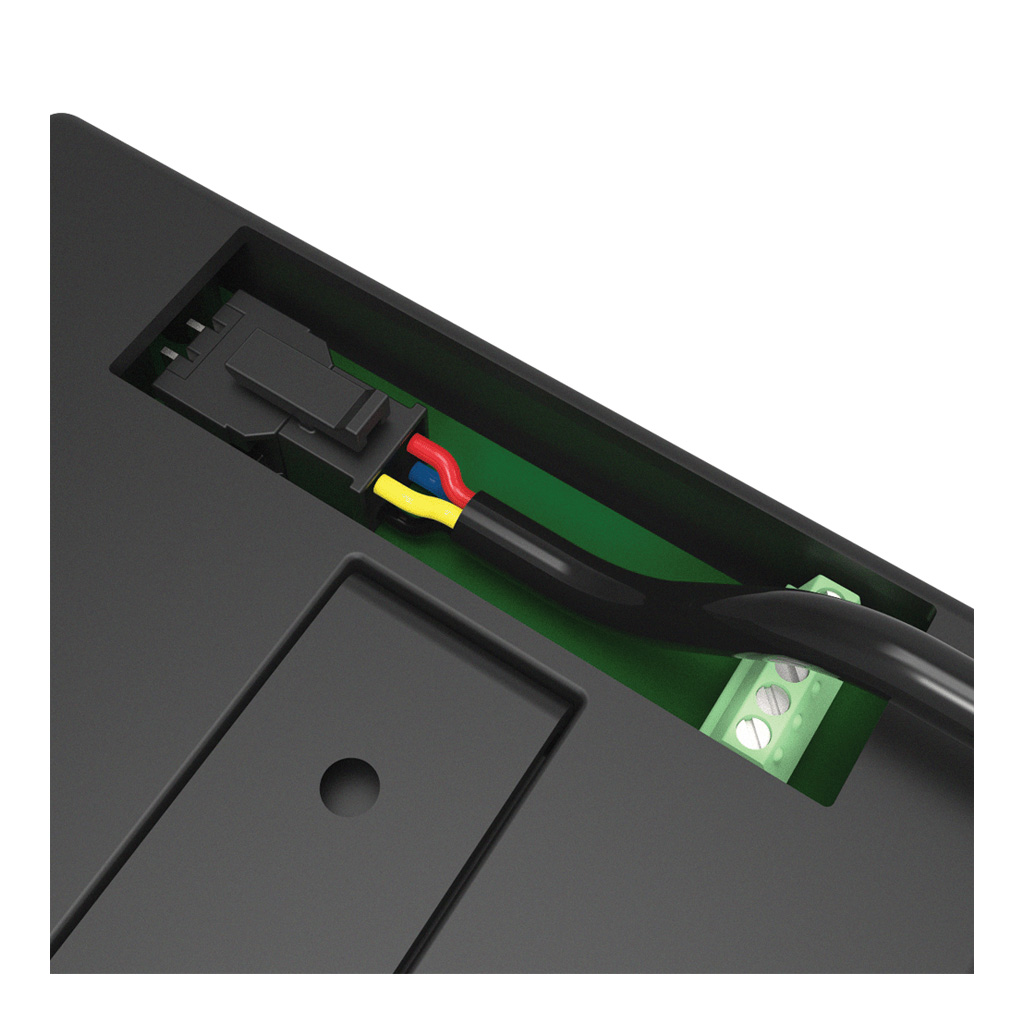

CONNECTORS – Terminal Block, Molex 4 pin snap fit

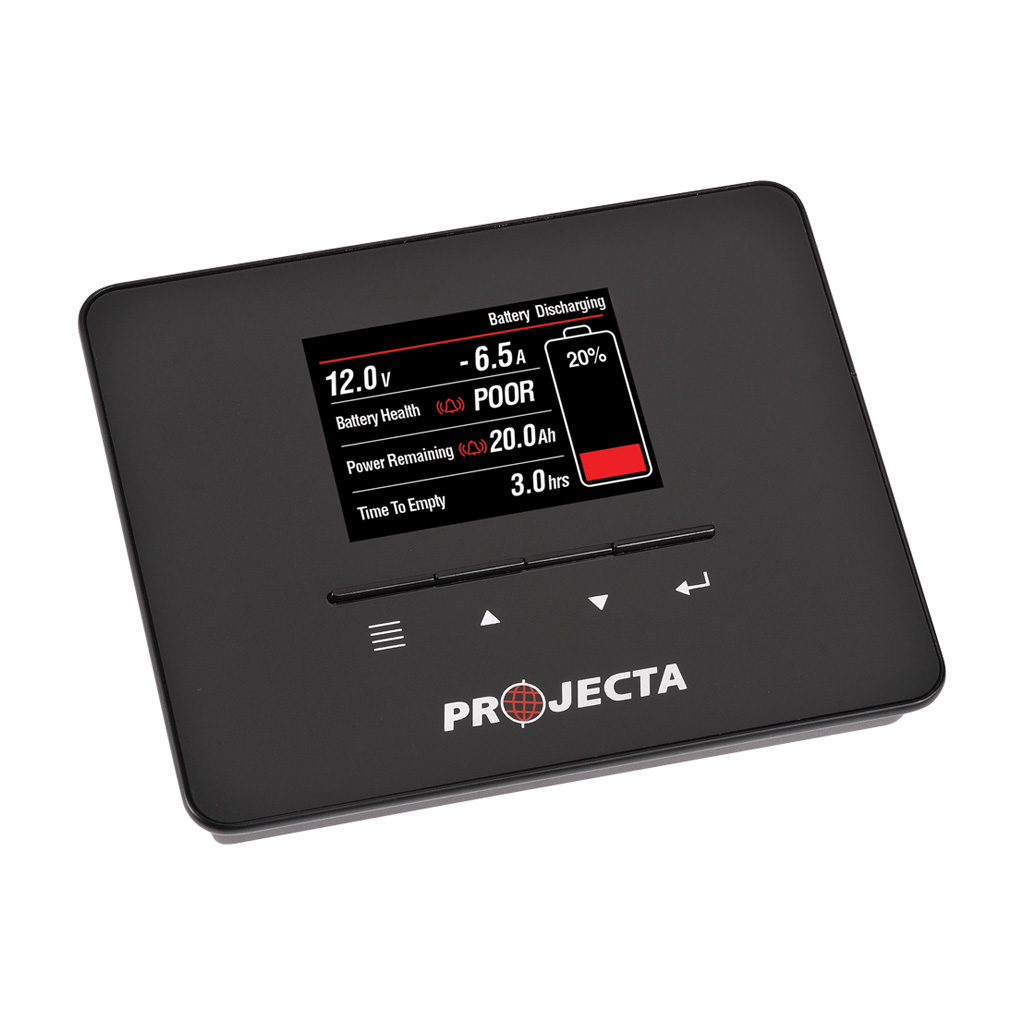

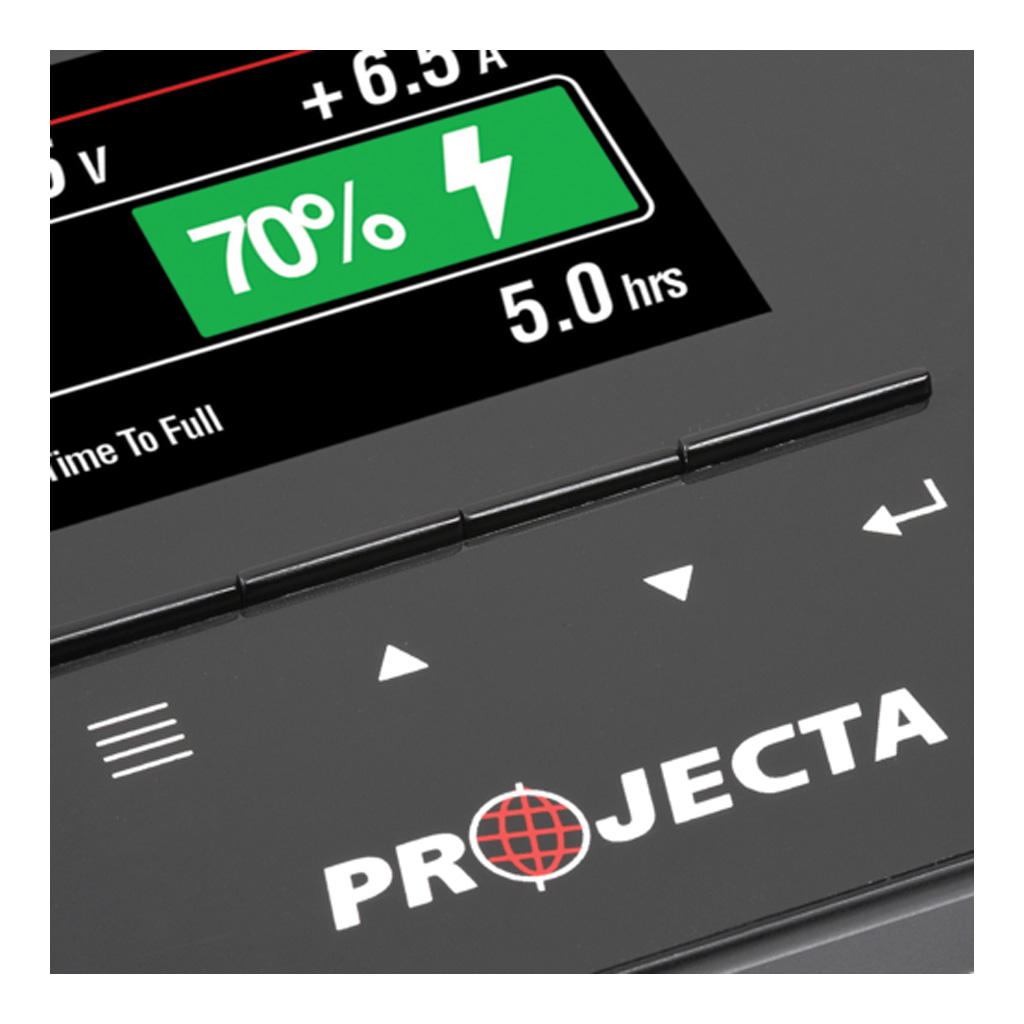

DISPLAY – TIME REMAINING (to full/to empty), POWER REMAINING (Ah), CHARGING/DISCHARGING STATUS, BATTERY STATE OF HEALTH (Ideal, Good, Fair, Poor)

PROTECTION – MINIMUM VOLTAGE – 6V

INPUT OVER VOLTAGE PROTECTION – 17V

REVERSE POLARITY PROTECTED
