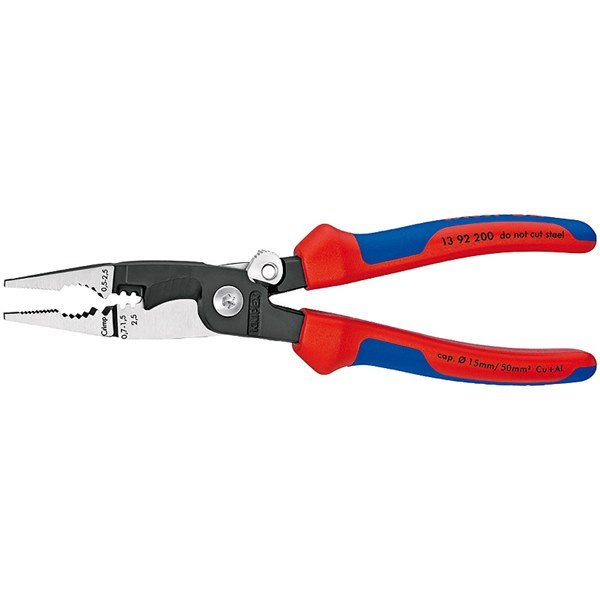

Multifunctional pliers for the electrical installation- to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules).6 functions in one pair of pliers
Smooth surfaces near the tips grip single cores without damaging them- serrated gripping surfaces and pipe grip for gripping flat and round material
Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²
Crimp die for wire-end ferrules 0.5 – 2.5 mm²
Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia.15 mm
Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version)
The cutting edge remains closed and protected
Slim dimensions for easy access
Bolted joint: precise, zero backlash operation of pliers
High-grade special tool steel, forged, oil-hardened
The activated locking lever keeps the cutting edges closed while other functions remain in place
The intelligent latching mechanism enables you to “grip” without opening the pliers
The cutting edge remians closed and protected
ATTRIBUTES
AWG 1/0
Barcode 4003773075103
Cable Capacity Ø15mm / 50mm²
Head Polished
Length 200mm
Net weight 280g
Pliers Black Atramentized
Stripping Capacity 0.75 -1.5 / 2.5mm²
Style Electrical Installation Pliers – With Lock
